Every BEM Electric Motor is a Benchmark of Precision and Quality
BEM Electric Motors Series ML & MH
The BEM ML- and MH-Series Electric Motors combine exceptional performance with compact, energy-efficient design. Equipped with Class H insulation optimized for frequency converters, they ensure durability and reliability. Reinforced inter-turn insulation enables safe PWM converter operation (dv/dt ≤ 5 kV/µs) without costly sinus filters.
Available as induction or permanent magnet motors, they feature either permanent magnet or squirrel cage rotors: PM motors offer a compact footprint, while squirrel cage designs deliver robust versatility for industrial and marine use. Precision engineering and intelligent design make the BEM ML & MH Series a benchmark in efficient and sustainable propulsion technology.
Power Range 200 kVA → 4000 kVA
Low Voltage Motors Overview
Best choice for bow thrusters and main propulsion.
| SERIES ML | |
|---|---|
| Frame size | ML06 – ML12 |
| Pole number | 4, 6, 8, 10, 12* |
| Power | 355 – 4.000 kW* |
| Voltage | 380, 400, 460, 660, 690, 960* |
| Speed | 200 rpm to 1800 rpm* |
*Other on request
High Voltage Induction motor
Best choice for main propulsion
| SERIES MH | SERIES H | |
|---|---|---|
| Frame size | MH10 – MH60 | H10 – H60 |
| Pole number | 4, 6, 8, 10, 12 | 4, 6, 8, 10, 12* |
| Power | 200 – 4.000kW | 220 – 4.000kW* |
| Voltage | 3.300, 6.000, 6.600V* | 10.000V, 10.500V* |
| Speed | 200 rpm to 1800 rpm* | 200 rpm to 1800 rpm* |
*Other on request

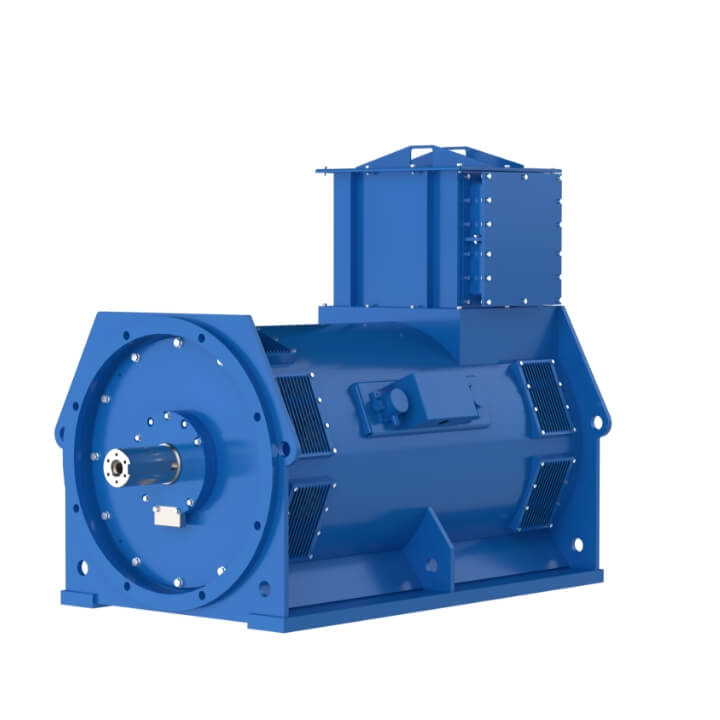

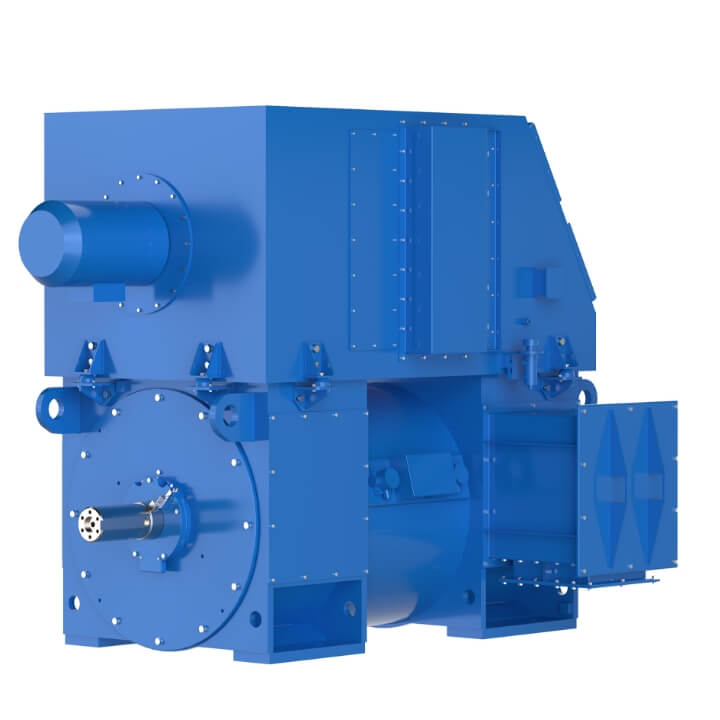

Main Propulsion Motors
The BEM Main Propulsion Motors combine maximum power density, energy efficiency, and long-term reliability for demanding marine environments. Engineered for hybrid and fully electric propulsion systems, they deliver smooth torque, minimal vibration, and optimized thermal performance – ensuring sustainable and efficient vessel operation across all conditions.
ML07-12 & MH10–60 Induction-or PM-Motor
| Power [kW] | 200 – 4.000* |
| Voltage [V] | 380 – 960 & 3.300 – 11.500* |
| Pole number | 4, 6, 8, 10, 12* |
| Mountig arrangement | IM B3 horizontal mounting shaft at the base |
| Cooling method | IC71W IC86W enclosure rate IP55 |
| Bearing type | Antifriction Bearing or Sleeve Bearing |
| Classification societies | DNV LR ABS BV CCS RINA* |
*Other on request

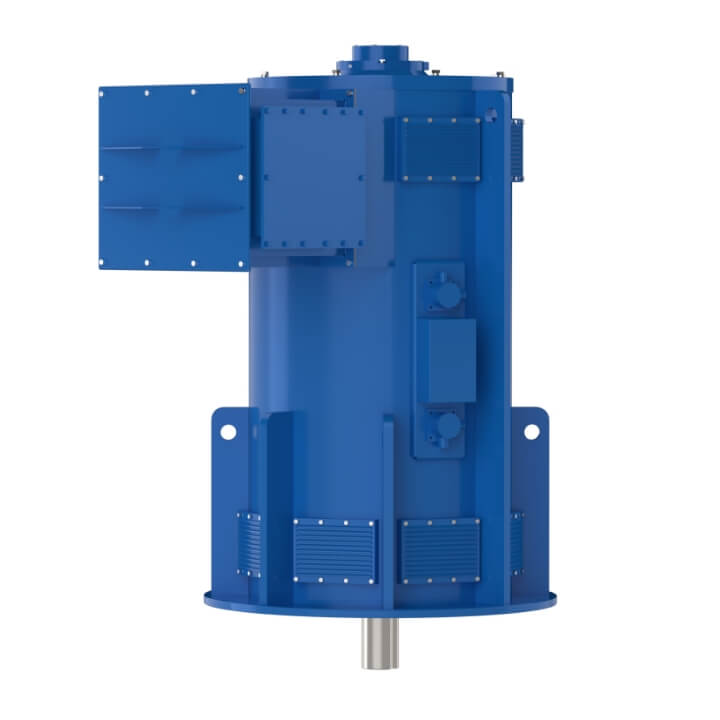

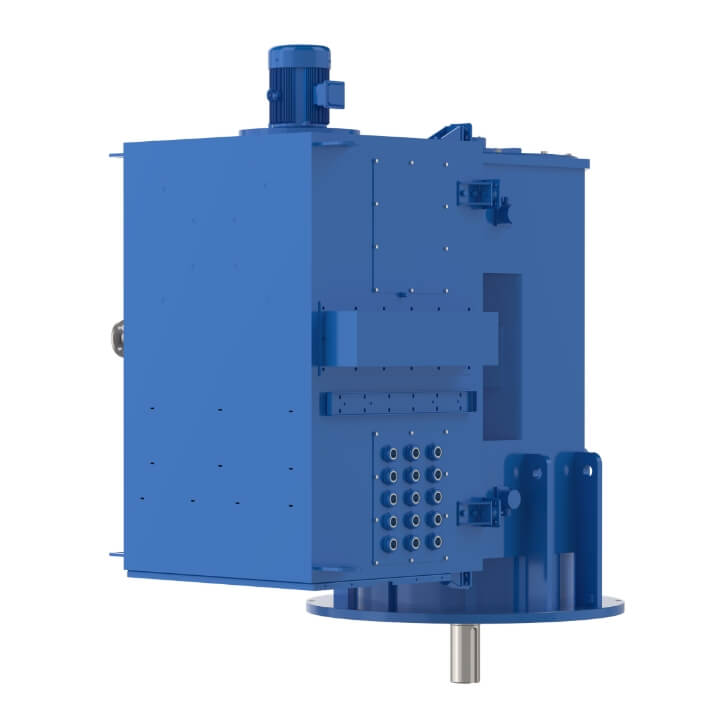

Bow Thruster & POD Motors
Superior vessel maneuverability. Designed for hybrid and fully electric marine systems, these motors ensure instant torque response, compact integration, and exceptional control even under demanding operating conditions. With optimized cooling, high corrosion resistance, and robust construction, BEM propulsion motors guarantee long-lasting performance and maximum energy efficiency – setting new standards in marine maneuvering technology.
ML07 – ML12 Induction Motor
| Power [kW] | 200 – 4.000* |
| Voltage [V] | 380 – 960* |
| Pole number | 4, 6, 8* |
| Mountig arrangement | IM V1 vertical mounting shaft downward |
| Cooling method | IC71W IC86W enclosure rate IP55 |
| Bearing type | Antifriction bearing* |
| Classification societies | DNV LR ABS BV CCS RINA* |
*Other on request
Your Benefits with BEM Electric Motors
Precision:
Tailored for fit and funktion.
Support:
Local service, global knowledge.
Durability:
Built to last and perform
Innovation:
Leading in low-voltage tech.
Efficiency:
Performance at competitive cost.
Expertise:
High-voltage specialists.

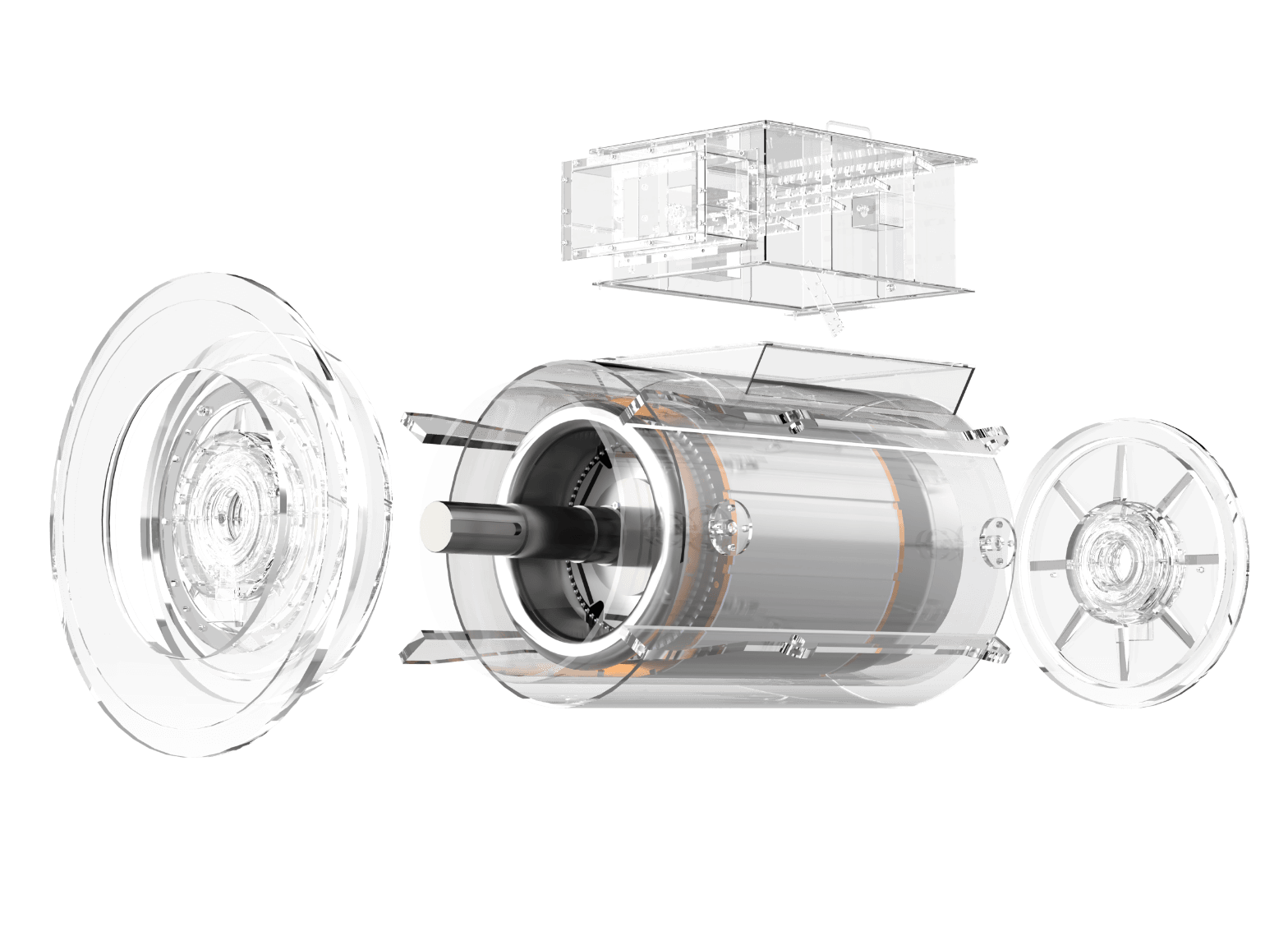

Tested Tough, Proven at Sea
Every BEM alternator and motor is built for maximum reliability at sea. All products are rigorously tested under real marine conditions to ensure consistent performance in demanding environments.
Through advanced simulation and endurance testing, BEM guarantees durability, operational safety, and long-term reliability across all propulsion and power systems. Because only what’s tested tough is truly proven at sea.
Shock →
Inclination →
Waterproof →
Humidity →
Vibrations →
Heat →
Icebreaker applications
Vessel at vive gags
Water spray fire fighting system
Tropical climate
Impact of the propulsion systems
Higher ambient temperature in engine rooms
Shock →
Inclination →
Waterproof →
Humidity →
Vibrations →
Heat →
Icebreaker applications
Vessel at vive gags
Water spray fire fighting system
Tropical climate
Impact of the propulsion systems
Higher ambient temperature in engine rooms
References

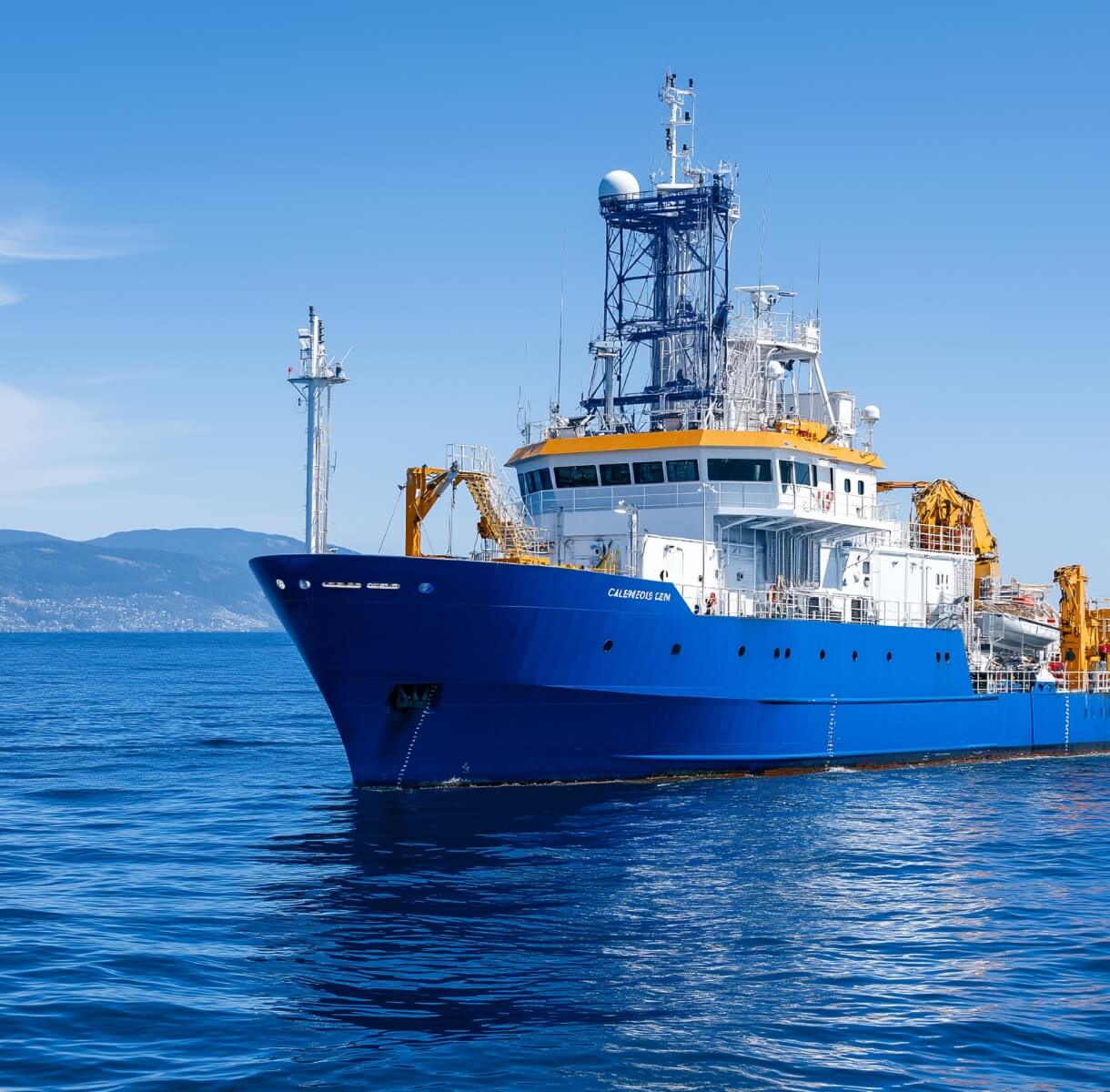

Research Vessel
Low-voltage alternators of the L-Series are installed for hybrid propulsion and on-board power generation on a multi-purpose naval support vessel.
Operating at 690 V / 60 Hz with a total power output of up to 3 MVA, the units provide reliable energy supply and low vibration levels under marine conditions.
Designed for continuous operation, they ensure stable voltage and efficient performance even under variable loads.
Bow Thruster & POD Motors – Marine Applications
High-voltage alternators of the H-Series supply continuous electrical power to an industrial cement production facility.
Each unit operates at 11 kV / 50 Hz with an output of approximately 3 MVA, ensuring long-term stability and efficiency in a 24/7 power plant environment.
Robust construction, advanced insulation, and optimized cooling systems guarantee reliable performance under high thermal and mechanical stress.
Main Propulsion Motors
A medium-voltage alternator operates in a combined heat-and-power installation that recovers thermal energy from diesel engine exhaust gases.
Driven by a steam turbine, it converts waste heat into electrical power at 3.3 kV / 50 Hz and approximately 1.8 MVA.
The closed-circuit water cooling (IC 81W) and double-bearing design enable high thermal stability, compact integration, and reduced CO2 emissions through efficient energy utilization.
